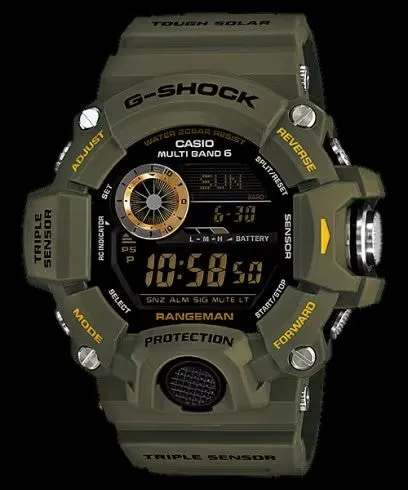

MASTER OF G RANGEMAN
A model equipped with the triple sensor from the G-SHOCK RANGEMAN series, which supports men facing harsh natural environments.
It comes equipped with a triple sensor for altitude, orientation, and atmospheric pressure/temperature, and has a button guard cylinder structure that enables smooth and accurate operation by using a metal cylinder guard on the sensor button part that displays information. Comes equipped with a sensor button which, when pressed, displays the previous sensor mode, and features three notification sound levels, enabling intuitive operation. The inverted LCD and a khaki base color that blends into the environment give it a powerful, tough design that exudes durability and gives the watch an edge.
A G-SHOCK RANGEMAN equipped with functions necessary for activities in extreme environments.

Basic Information

• Case size (L× W× H)

  55.2 × 53.5 × 18.2 mm

• Weight

  93 g

• Case and bezel material

  Resin

• Band

  Resin Band

• Construction

  Shock Resistant

• Water resistance

  200-meter water resistance

• Time adjustment

  Radio-controlled Watch; Multi band 6

• Power supply and battery life

  Tough Solar (Solar powered)

• Sensor feature

  Altimeter
  Measuring range: -700 to 10,000 m (-2,300 to 32,800 ft.)
  Measuring unit: 1 m (5 ft.)
  Altitude Memory Function:
  Manual Readings: 40 records, each containing date and time, direction angle, altitude, barometric pressure, and
  temperature
  Auto Save Data: High altitude, low altitude, cumulative ascent, cumulative descent (1 value each)
  Others: Relative altitude readings (-3,000 to 3,000 m)
  Selectable measurement interval: 5 seconds or 2 minutes
  *1 second for first 3 minutes only
  *Changeover between meters (m) and feet (ft)
  Barometer
  Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
  Display unit: 1 hPa (0.05 inHg)
  Atmospheric pressure tendency graph (past 42 hours of readings)
  Atmospheric pressure differential graphic
  Barometric pressure tendency information alarm (beep and arrow indicate significant changes in pressure)
  *Changeover between hPa and inHg
  Digital compass
  Measures and displays direction as one of 16 points
  Measuring range: 0 to 359°
  Measuring unit: 1°
  60 seconds continuous measurement
  Graphic direction pointer
  Bidirectional calibration
  Magnetic declination correction
  Bearing memory
  Thermometer
  Display range: -10 to 60℃ (14 to 140℉)
  Display unit: 0.1℃ (0.2℉)
  *Changeover between Celsius (℃) and Fahrenheit (℉)

Exterior

• Glass

  Mineral Glass

Watch Features

• World time

  World time
  31 time zones (48 cities coordinated universal time), daylight saving on/off

• Sunrise/sunset display

  Sunrise, sunset time display Sunrise time and sunset time for specific date, daylight pointers

• Stopwatch

  1/100-second stopwatch
  Measuring capacity: 999:59'59.99''
  Measuring modes: Elapsed time, split time, 1st-2nd place times

• Timer

  Countdown timer
  Measuring unit: 1 second
  Countdown range: 24 hours
  Countdown start time setting range: 1 minute to 24 hours (1-minute increments and 1-hour increments)

• Alarm/hourly time signal

  5 daily alarms (with 1 snooze alarm)
  Hourly time signal

• Light

  LED backlight (Super Illuminator) Full auto LED light, selectable illumination duration, afterglow

• Light color

  LED:White

• Calendar

  Full auto-calendar (to year 2099)

• Mute feature

  Button operation tone on/off

• Energy saving feature

  Power Saving (display goes blank to save power when the watch is left in the dark)

• Battery display/alert

  Battery level indicator

• Run time

  Approx. battery operating time:
  8 months on rechargeable battery (operation period with normal use without exposure to light after charge)
  23 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)

• Accuracy

  Accuracy: ±15 seconds per month (with no signal calibration)

• Other features

  12/24-hour format
  Regular timekeeping: Hour, minute, second, pm, month, date, day

• Time adjustment details

  Time Calibration Signals
  Station name: DCF77 (Mainflingen, Germany)
  Frequency: 77.5 kHz
  Station name: MSF (Anthorn, England)
  Frequency: 60.0 kHz
  Station name: WWVB (Fort Collins, United States)
  Frequency: 60.0 kHz
  Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
  Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/Saga)
  Station name: BPC (Shangqiu City, Henan Province, China)
  Frequency: 68.5 kHz
  Time calibration signal reception
  Auto receive up to six* times a day (remaining auto receives canceled as soon as one is successful)
  *5 times a day for the Chinese calibration signal
  Manual receive
  The latest signal reception results

• Sensor feature details

  Manual data recording of up to 40 records (altitude, barometric pressure / temperature, bearing, time (Time Stamp))
